Mfr.part#:	AIR-AP2802E-H-K9 Rating: 100% 5/5.0 9 Reviews
Name:	AIR-AP2802E-H-K9 - Cisco Aironet 2802E Access Point
Detail:	802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, -H Regulatory Domain AIR-AP2802E-H-K9
Availability:	In Stock
Condition:	New
GTIN:	0882658894893 0882658894893 882658894893
Price:	$1,542.00

AIR-AP2802E-H-K9

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

AIR-AP2802E-H-K9 Overview

Cisco Aironet 2800e. Maximum data transfer rate: 5200 Mbit/s, Wi-Fi data rate (max): 2600 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2. Placement: Ceiling, Wall, Product colour: White, Certification: UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155 FCC Part 15.107,.... Antenna features: Detachable antenna, Antenna gain level (max): 6 dBi. Flash memory: 256 MB, Internal memory: 1024 MB

AIR-AP2802E-H-K9 is one of the Cisco Aironet 2800 Series Access Points. This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802E-H-K9 provides external antenna and H regulatory domain.

Quick Specs

Table 1

Product Code	AIR-AP2802E-H-K9
Frequency band and 20-MHz operating channels	H (H regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna
Features	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support
Interfaces	- 2 x 100/1000BASE-T autosensing (RJ-45) - Management console port (RJ-45) - USB 2.0 (enabled via future software)
System memory	- 1024 MB DRAM - 256 MB flash
Dimensions (W x L x H)	8.66 x 8.77 x 2.50 in.
Net Weight	4.6 lb (2.09 kg)

Product Details

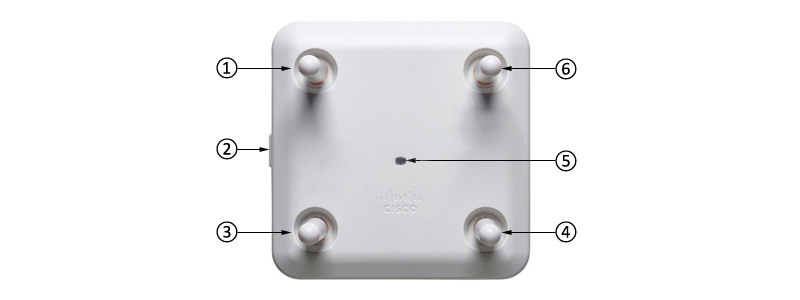

Figure 1 shows the face of AIR-AP2802E Model.

Notes:

①	Dual-band antenna connector A with antenna	④	Dual-band antenna connector C with antenna
②	Location of the Smart antenna connector port on the right side of the AP	⑤	Status LED
③	Dual-band antenna connector D with antenna	⑥	Dual-band antenna connector B with antenna

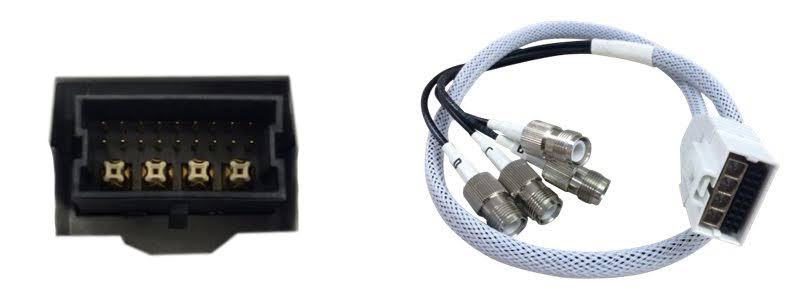

Figure 2 shows the Smart Antenna Connector and DART cable on the AIR-AP2802E model.

The 2802E model has a Smart antenna connector, which is connected directly to the flexible radio. Without a supported external antenna connected to the Smart Antenna connector, the flexible radio can stay only in 2.4 GHz mode. If an external antenna is connected, the flexible radio can be used in the full Flexible Radio Assignment mode, allowing dual 5 GHz and Wireless Security Monitoring modes.

To connect to any supported RP-TNC connector-type external antenna to the Smart antenna connector, use the DART cable connector AIR-CAB002-DART-R=, which is to be ordered separately.

Smart Antenna Connector and Cable

Compare to Similar Items

Table 2 shows the comparison between two AP.

Models	AIR-AP2802E-I-K9	AIR-AP2802E-H-K9
Frequency band and 20-MHz operating channels	I (I regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels	H (H regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna	External Antenna
Features	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support

Support & Resources

[PDF] Cisco Indoor Access Points Comparison Chart

Get more information

Do you have any question about the AIR-AP2802E-H-K9?

Indoor, Dual-Band, Controller-Based 802.11a/g/n/ac, 2 x 100/1000BASE-T RJ-45, 1 x Console RJ-45, External Antennas, H regulatory domain

2.4 GHz

5 GHz

Maximum data transfer rate: 5200 Mbit/s

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u

802.1x RADIUS, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2

Power over Ethernet (PoE)

Detachable antenna

Summary Description

Cisco Aironet 2800e, 5200 Mbit/s, 2600 Mbit/s, 10,100,1000 Mbit/s, 2.412 - 5.825 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3,..., 13 channels

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-AP2802E-H-K9?

Our lowest price for AIR-AP2802E-H-K9 is $1,542.00 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications

Specification

AIR-AP2802E-H-K9 Specification

AIR-AP2802E-H-K9 Specification
Networking
Type	Wireless access point
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	5.2 Gbps
Data Link Protocol	IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ad (LACP)
Status Indicators	Boot state, Error, Status
Features	4T4R MIMO technology, Auto-sensing per device, Beamforming technology, CleanAir technology, ClientLink 4.0 technology, Cross AP Noise Reduction, Cyclic shift diversity (CSD), DFS support, High Density Experience (HDX), Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), MIMO equalization, Optimized AP Roaming, Packet aggregation A-MPDU, Packet aggregation A-MSDU
Wireless Protocol	802.11a/b/g/n/ac Wave 2
Wi-Fi Bands	2.4 GHz, 5 GHz
Interface Provided
Qty	1
Type	Console
Connector Type	RJ-45
Miscellaneous
Included Accessories	Ceiling grid clip, Low profile bracket
Service
Support Details Type	Limited warranty
Support Details Service Included	Advance hardware replacement
Support Details Full Contract Period	Lifetime
Header
Compatibility	PC
Country Kits	China
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Aironet
Model	2802E
Brand	Cisco
Service & Support Details
Response Time	10 days
Software
Type	CAPWAP Software Image
Capacity
Type	Spatial streams
Value	3
Dimensions & Weight
Width	8.7 in
Depth	8.8 in
Height	2.5 in
Service & Support
Type	Limited lifetime warranty
Chassis
Ruggedized Design	Indoor
