Mfr.part#:	AIR-AP3802I-E-K9 Rating: 91% 4.6/5.0 17 Reviews

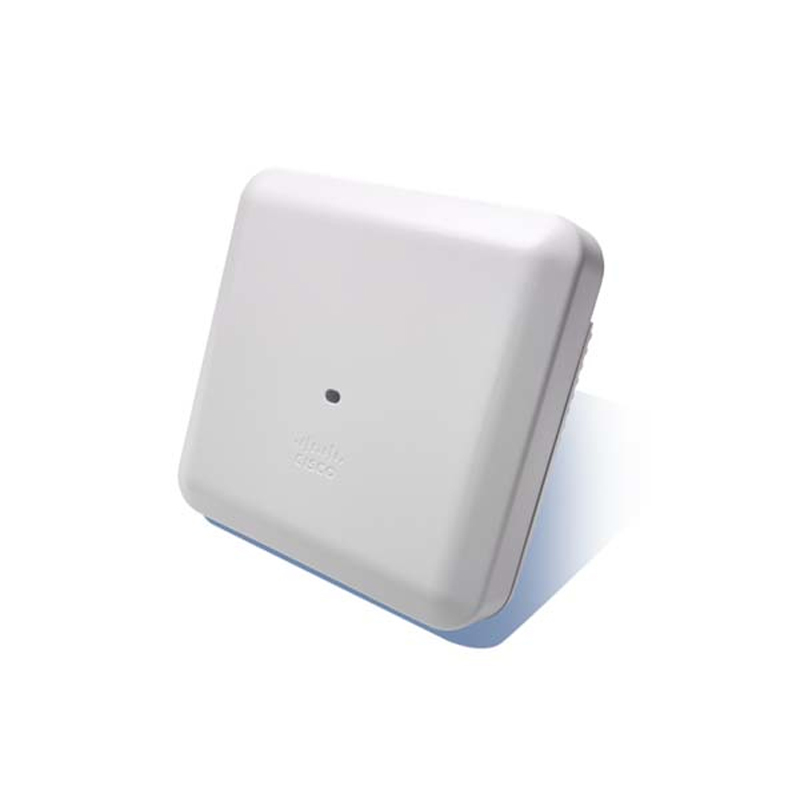

Name:	AIR-AP3802I-E-K9 - Cisco Aironet 3802i Access Point
Detail:	802.11ac Wave 2 AP w/CleanAir, 4x43, Mod, Internal Antenna, mGig, E Regulatory Domain AIR-AP3802I-E-K9
Availability:	In Stock
Condition:	New
GTIN:	0882658878466 0882658878466 882658878466
Price:	$201.98

AIR-AP3802I-E-K9

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

AIR-AP3802I-E-K9 Overview

Cisco AIR-AP3802I-E-K9. Maximum data transfer rate: 5200 Mbit/s, Wi-Fi data rate (max): 2600 Mbit/s, Ethernet LAN data rates: 2500,5000,10,100,1000 Mbit/s. Placement: Ceiling, Wall, Product colour: White. Antenna type: Internal. Width: 220 mm, Depth: 220 mm, Height: 62.5 mm

AIR-AP3802I-E-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802I-E-K9 is designed for Indoor, challenging environments, with internal antennas. Besides, it provides A regulatory domain.

Quick Specs

Table 1 shows the quick specs of AIR-AP3802I-E-K9.

Product Code	AIR-AP3802I-E-K9
Antennas	Internal Antennas
Interfaces	- 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45)
Features	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support
Regulatory Domain	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
System	- 1024 MB DRAM - 256 MB flash
Dimensions (W x L x H)	8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)
Net Weight	4.6 lb (2.09 kg)

Product Details

Figure 1 shows the face of the AIR-AP3802I.

AIR-AP3802I Face

Note:

①	Status LED
②	Location of the ports and connectors on the head of the AP
③	Location of the module connector port on the base of the AP

Module Connector Port: The AP 3800 has modularity support. This module design allows for installation onto the side of the access point. This allows for larger antenna arrays and does not constrict the development of Cisco and potentially third party modules as they are no longer limited by the physical size of the access point. Additionally, filtering is installed on the AP 3800 for cellular and other radio coexistence.

Figure 2 shows ports and connections on the head of the AP.

AIR-AP3802I Ports Connections

Note:

①	Kensington lock slot	⑤	AUX / Gigabit Ethernet port
②	Mode button	⑥	PoE / mGig port
③	Console port	⑦	48 VDC power port
④	USB port

Compare to Similar Items

Table 2 shows the comparison between two AP.

Models	AIR-AP3802I-E-K9	AIR-AP3802E-E-K9
Antenna	Internal Antenna	External Antenna
Interfaces	- 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45)	- 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45)
Regulatory Domain	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

Support & Resources

[PDF] Cisco Indoor Access Points Comparison Chart

Get more information

Do you have any question about the AIR-AP3802I-E-K9?

Indoor, Dual-Band, Controller-Based 802.11a/b/g/n/ac, 1 x 100/1000/2500/5000 Multigigabit Ethernet RJ-45, 1 x 100/1000BASE-T RJ-45, 1 x Console RJ-45, Internal Antennas

2.4 GHz

5 GHz

Maximum data transfer rate: 5200 Mbit/s

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Internal

Summary Description

Cisco AIR-AP3802I-E-K9, 5200 Mbit/s, 2600 Mbit/s, 2500,5000,10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab,..., Ceiling, Wall, White

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-AP3802I-E-K9?

Our lowest price for AIR-AP3802I-E-K9 is $201.98 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications

Specification

AIR-AP3802I-E-K9 Specification

AIR-AP3802I-E-K9 Specification
Detail	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, E Regulatory Domain
Regulatory Domain	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
Software and supported wireless LAN controllers	Cisco Unified Wireless Network Software Release 8.2.MR1 or later Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco IOS XE Software Release 16.3 – Target Q3 CY2016 Cisco Catalyst 3850 Series and 3650 Series Switches
802.11n version 2.0 (and related) capabilities	4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 capabilities	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
Interfaces	◦ 2 Ethernet ports ◦ 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ◦ 100/1000BASE-T autosensing (RJ-45 - AUX port) ◦ Management console port (RJ-45)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm),
Weight	4.6 lb (2.09 kg)
Input power requirements	802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE) 802.3at power injector (AIR-PWRINJ6=) 50W power supply (AIR-PWR-50=)
Power draw	30W at the PSE with all features enabled except for the USB 2.0 port 34W at the PSE with the USB 2.0 port enabled
Environmental	Cisco Aironet 3800i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1024 MB DRAM 256 MB Flash
Warranty	Limited lifetime hardware warranty
