main product photo
Mfr.part#:

AIR-CT8510-300-K9
Name: AIR-CT8510-300-K9 - Cisco 8510 Wireless Controller
Detail:
Cisco 8500 Series Wirele Controller Supporting 300 Aps AIR-CT8510-300-K9
Availability: In Stock
Condition: New
GTIN: 0882658529658
icon
  • 0882658529658
  • 882658529658

AIR-CT8510-300-K9

Cisco 8500 Series Wirele Controller Supporting 300 Aps AIR-CT8510-300-K9
Call for Price
Request Bulk Quote
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
Expert Team Support

Laila Jones

Technical Customer Support

  • Expert Team Support CHAT
  • Expert Team Support EMAIL
  • Expert Team Support WHATSAPP
overview
specifications
reviews
overview
Overview

AIR-CT8510-300-K9 Overview

Cisco AIR-CT8510-300-K9. LED indicators: LAN, Safety: UL 60950-1:2003, EN 60950:2000, EMI (A), FCC 15.107/15.109, ICES-003, VCCI, EN 55022, EN 55024. Management protocols: SNMP v1/v2c/v3, Telnet, TFTP, SNTP, HTTP. Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11n,..., Cabling technology: 10/100/1000Base-T(X). Security algorithms: 104-bit WEP, 128-bit WEP, 3DES, 802.1x RADIUS, DES, SSL/TLS, WPA, WPA2, Authentication method: TACACS. Input voltage: 100 - 240 V, Input frequency: 47 - 63 Hz, Heat dissipation: 2302 BTU/h

Cisco 8500 Series Wireless Controllers are a highly scalable and flexible platform that enables mission-critical wireless networking for enterprise and service provider deployments. AIR-CT8510-300-K9 supports 300 APs.

Quick Specs

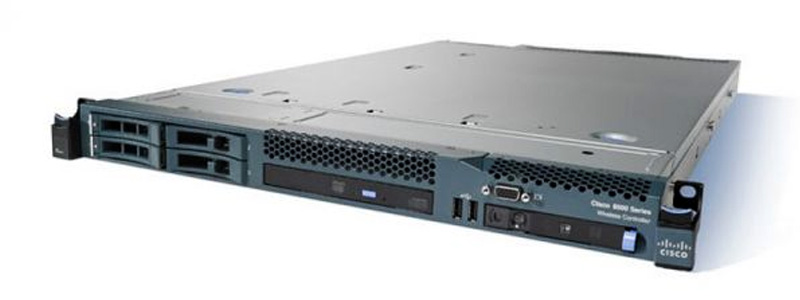

Figure 1 shows the appearance of AIR-CT8510 controller.

AIR-CT8510 Appearance

Table 1 shows the Quick Specs.

Product Code

AIR-CT8510-300-K9

Description

Cisco 8500 Series Wireless Controller Supporting 300 Aps

Features (Cisco 8500 Series)

- Supports 100,300, 500, 1000, 3000, or 6000 access points
- Supports up to 64,000 clients with licenses
- Supports up to 6000 branch locations (up to 2000 Cisco FlexConnect groups) with 100 access points per Flexgroup and multiple Flex-groups per remote location

- Supports up to 4096 VLANs

Interfaces

- 2 x 10 Gigabit Ethernet interfaces
- Small Form-Factor Pluggable (SFP) options
- LED indicators: Network Link, Diagnostics
- 1 x service port: 10/100/1000 Mbps Ethernet (RJ-45)

Wireless

IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac

Dimensions (W x L x H)

17.30 x 28.00 x 1.69 in. (440.0 x 711.4 x 43.0 mm)

Net Weight

35.1 lb (15.9 kg)

Product Details

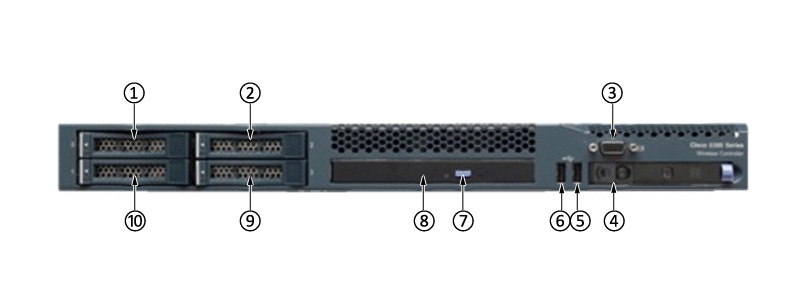

Figure 2 shows the front panel of AIR-CT8510 controller.

AIR-CT8510 Front View

Note：

â‘

Drive Bay 0

â‘¥

USB 1 Connector

â‘¡

Drive Bay 2

⑦

Optical Drive Eject Button

â‘¢

Video Connector

⑧

Optical Drive Bay

â‘£

Power Control Button and LED

⑨

Drive Bay 3

⑤

USB 2 Connector

â‘©

Drive Bay 1

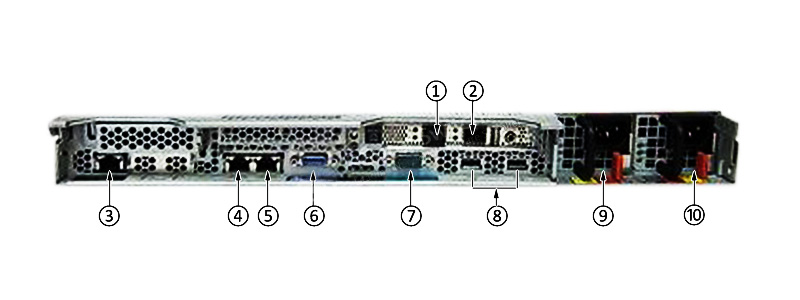

Figure 3 shows the back panel of AIR-CT8510 controller.

AIR-CT8510 Back View

Note：

â‘

10G Port 1

â‘¥

Video Connector

â‘¡

10G Port 2

⑦

Serial Connector

â‘¢

IMM 10/100Mbps Ethernet Port

⑧

USB Connectors

â‘£

Service Port

⑨

Power Supply 1

⑤

HA Port

â‘©

Power Supply 2

- The Integrated Management Module (IMM) combines service processor functions. The IMM provides advanced service-processor control, monitoring, and alerting function. If an environmental condition exceeds a threshold or if a system component fails, the IMM lights LEDs to help you diagnose the problem, records the error in the event log, and alerts you to the problem. The IMM provides remote server management through the following industry-standard interfaces:

- Simple Network Management Protocol (SNMP) version 3

- Web browser

The SFP Support

Table 2 shows some recommended SFP for this wireless controller.

SFP

Description

SFP-10G-SR

10GBASE-SR SFP Module

SFP-10G-LR

10GBASE-LR SFP+ Module for SMF 10 Gbps

SFP-H10GB-CU1M

Cisco Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors, SFP-H10GB-CU1M

SFP-H10GB-CU3M

Cisco Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors, SFP-H10GB-CU3M

SFP-H10GB-CU5M

SFP-H10GB-CU5M,5M Passive Copper Twinax Cable F, Nexus,24AWG cable assembly

Compare to Similar Items

Table 3 shows the comparison of similar items.

Models

AIR-CT8510-100-K9

AIR-CT8510-300-K9

Max Access Points with licenses

6000

6000

Max Client Support with licenses

64,000

64,000

Ports

2 x 10G SFP

2 x 10G SFP

Bundle

100 Access Points

300 Access Points

Get more information

Do you have any question about the AIR-CT8510-300-K9?

Contact us now via Live Chat or support@buyrouterswitch.com.

Summary Description

Cisco AIR-CT8510-300-K9, LAN, UL 60950-1:2003, EN 60950:2000, EMI (A), FCC 15.107/15.109, ICES-003, VCCI, EN 55022, EN 55024, SNMP v1/v2c/v3, Telnet, TFTP, SNTP, HTTP, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEE

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-CT8510-300-K9?

Click hereto find the lowest discounted price for AIR-CT8510-300-K9.

Explore even more affordable prices for Wireless and Cisco products.

specifications
Specification

AIR-CT8510-300-K9 Specification

AIR-CT8510-300-K9 Specification

Maximum throughput:

10 Gbps

Link Aggregation Group (LAG):

Yes

Form factor:

1 RU Appliance

Flexconnect + mesh:

Yes

Max WLANs:

512

Maximum access point:

6,000

Interfaces or network I/O:

Two 10 GE

Access control lists (ACLs):

Yes

Radio Resource Management (RRM):

Yes

Bonjour Gateway:

Yes

Mesh:

Yes

Max Power consumption:

675W

Cisco VideoStream:

Yes

OfficeExtend:

Yes

Rendundant power:

Yes (installed) AC or DC

Guest anchor:

Yes

Workgroup bridge:

Yes

Max Number of Flex Groups:

2,000

Guest services (wireless):

Yes

Minimum access points:

100

Maximum RF Tag support:

50,000

QoS:

Yes

Application Visibility and Control (AVC):

Yes

HA with Client SSO:

Yes

Max Access Points per Group:

100

Datagram Transport Layter Security (DTLS):

Yes

Cisco Compatible Extensions Call Admission Control (CAC)/Wi-Fi Multimedia (WMM):

Yes

HA with AP SSO:

Yes

Bi-directional rate limiting:

Yes

Max VLANs:

4096

Rendundant fans:

Yes

Integrated Wireless Policy Engine:

Yes

Maximum client support:

64,000

Central Mode (formerly Local Mode):

Yes

Max Number of access point groups:

6,000

Mobililty:

L2 & L3

FlexConnect:

Yes
