Mfr.part#:	ASA5506-FTD-K9
Name:	ASA5506-FTD-K9 - Cisco ASA 5500 Firewalls
Detail:	ASA 5506-X with Firepower Threat Defense. 8GE. AC ASA5506-FTD-K9
Availability:	In Stock
Condition:	New
GTIN:	0882658957505 0882658957505 882658957505

ASA5506-FTD-K9

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

ASA5506-FTD-K9 Overview

Cisco ASA 5506-X. Firewall throughput: 0.75 Gbit/s, IPS/IDS throughput: 125 Mbit/s. Heat dissipation: 205 BTU/h, Certification: - 47 CFR - CISPR22 - CNS13438 - EN 300 386 - EN 55022 - EN61000-3-2 - EN61000-3-3 - ICES-003 Issue.... Connectivity technology: Wired, WAN connection: Ethernet (RJ-45). Storage media type: SSD, Storage drive interface: mSATA, Flash memory: 8000 MB. AC input voltage: 90-240 V

The ASA5506-FTD-K9 is the ASA 5506-X with Firepower Threat Defense. 8GE. AC.

Quick Spec

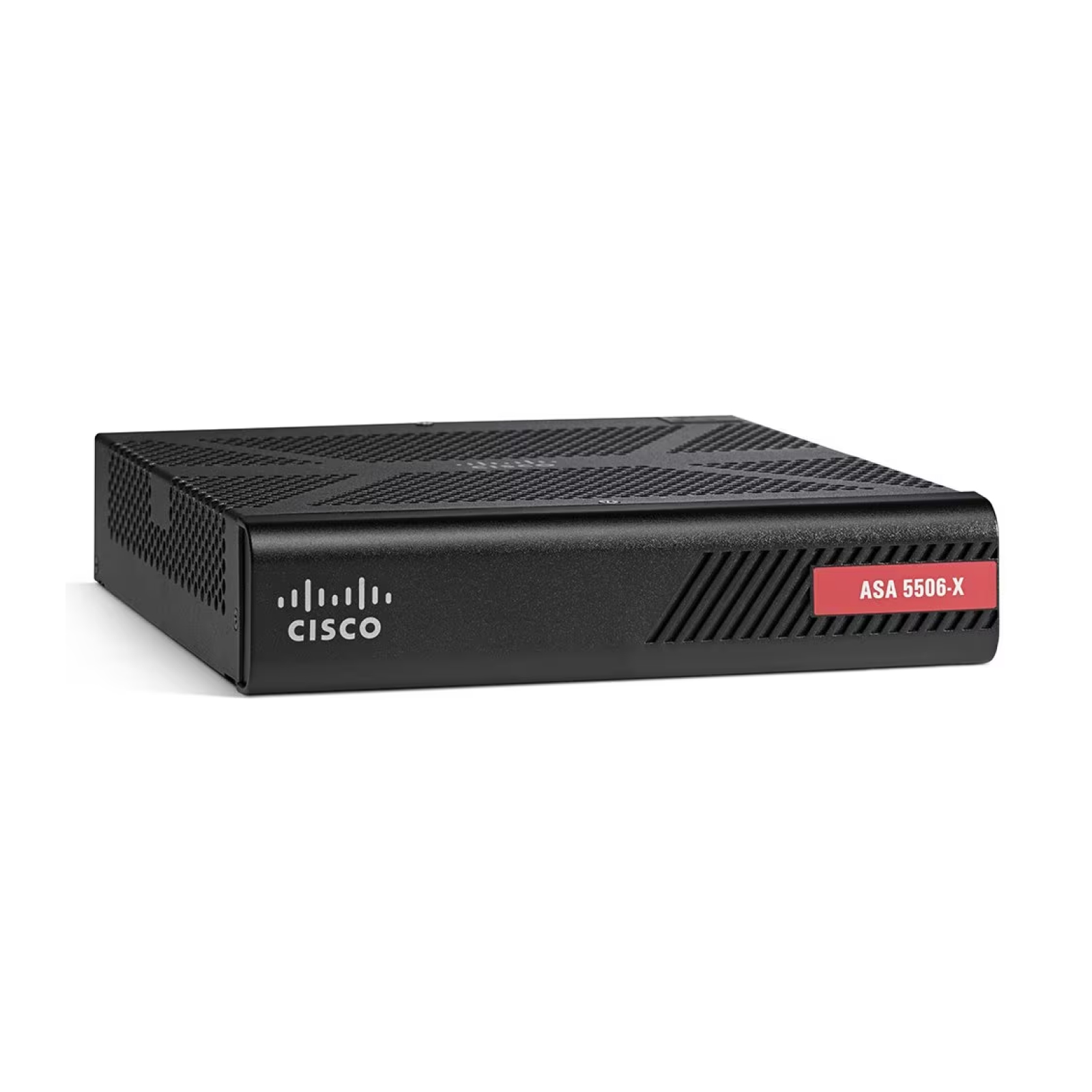

Figure 1 shows the appearance of ASA5506-FTD-K9.

Table 1 shows the quick spec.

Product Number	ASA5506-FTD-K9
Product Description	ASA 5506-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Stateful inspection throughput (maximum1)	750 Mbps
Stateful inspection throughput (multiprotocol2)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	100 Mbps
Users/nodes	Unlimited
Dimensions(H x W x D)	1.72 x 7.871 x 9.23 in.(4.369 x 19.992 x 23.444 cm)
Weight (with AC power supply)	4 lb (1.82 kg)

Product Details

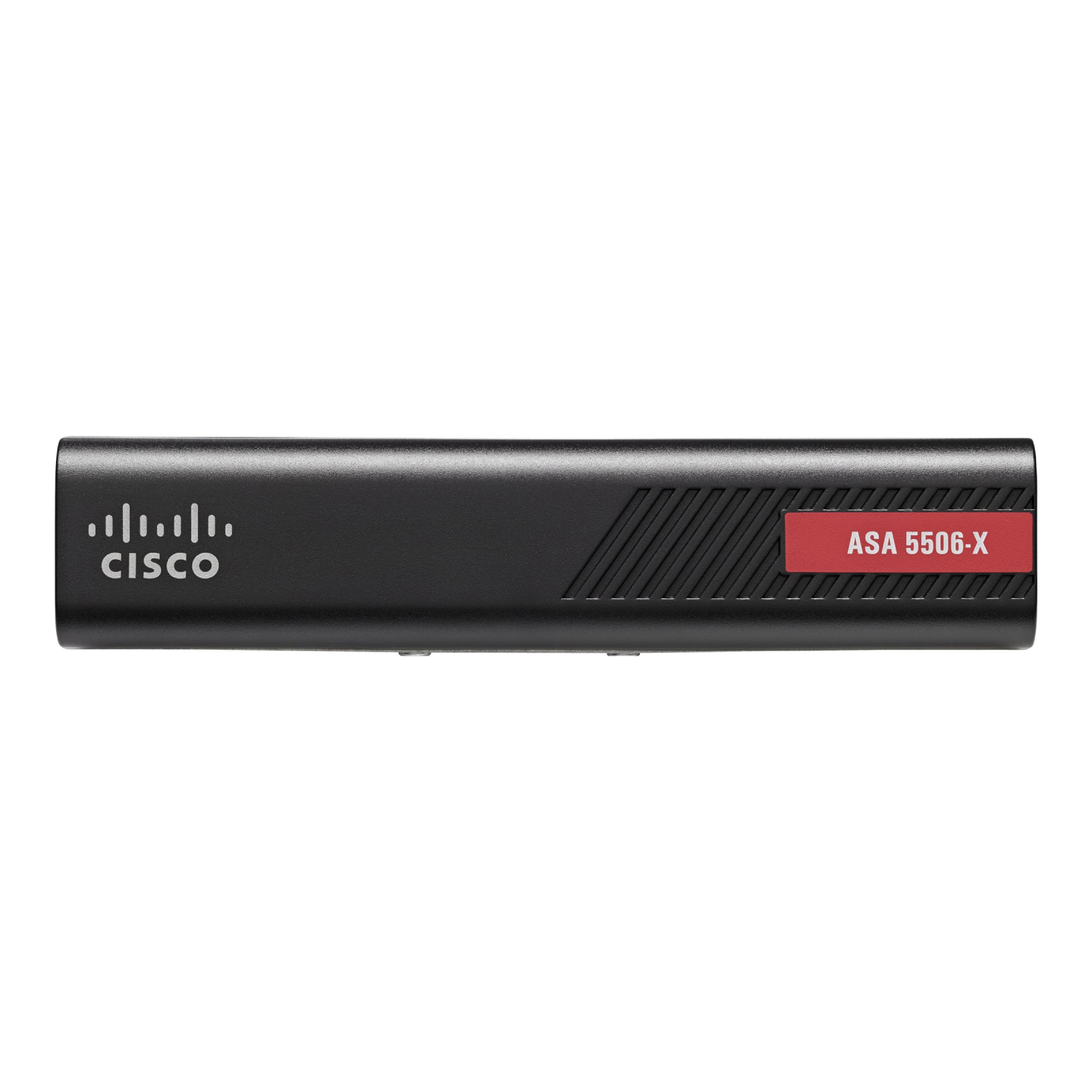

Figure 2 shows the front panel of ASA5506-K9. There is not any connector or LED on the front panel. The ASA5506-FTD-K9 is similiar with it.

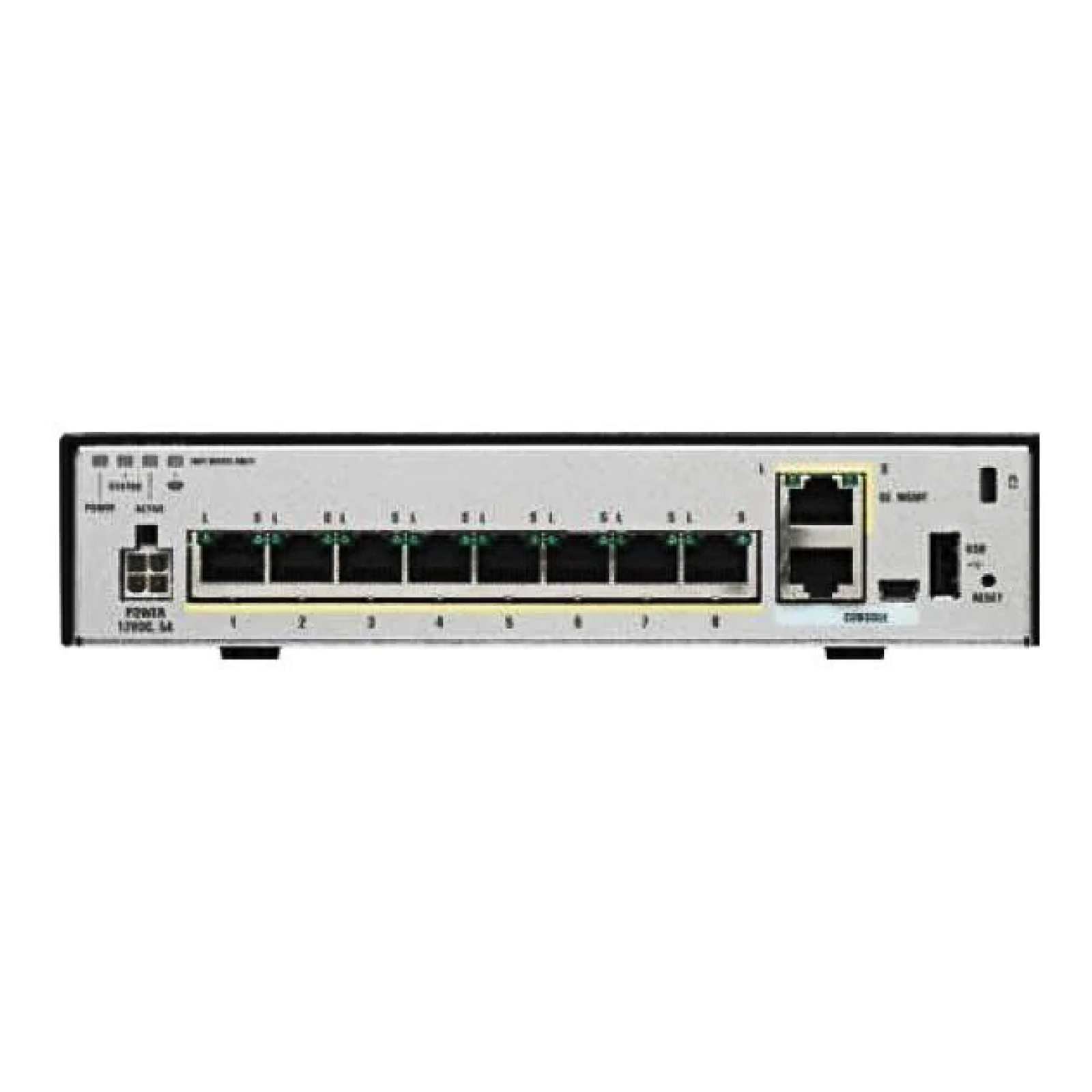

Figure 3 shows the back panel of ASA5506-K9. The ASA5506-FTD-K9 is similiar with it.

Note:

①	Status LEDs	⑤	USB Port
②	Management port	⑥	Console ports
③	Lock slot	⑦	Network data ports
④	Reset button	⑧	Power cord socket

·The Status LEDs include Power, Status, Active and WLAN LEDs.

·The Console Ports consist of a standard RJ45 port and a mini USB Type B. They can't be used in the same time. When using USB Type B, the RJ45 port is inactive but to pull up the USB cable can make RJ45 port active.

·Recessed button helps to reset the ASA to its default “as-shipped” state following the next reboot when pressed for longer than three seconds. Configuration variables are reset to factory default but the flash is not erased and no files are removed.

Compare to Similar Items

Table 3 shows the comparison of ASA5506-FTD-K9 and ASA5508-FTD-K9.

Models	ASA5506-FTD-K9	ASA5508-FTD-K9
Product Description	ASA 5506-X with Firepower Threat Defense. 8GE. AC	ASA 5508-X with Firepower Threat Defense. 8GE. AC
Stateful Inspection Throughput (multiprotocol)	300 Mbps	500 Mbps
Maximum 3DES/AES VPN Throughput	100 Mbps	175 Mbps
Memory	4GB	8GB
Flash	8GB	8GB
Height (rack units)	Desk Top	1 RU

Get more information

Do you have any question about the ASA5506-FTD-K9?

ASA 5506H-X with FirePOWER services, ruggedized, security plus, 4GE Data, 1GE Mgmt, AC, DES

Firewall throughput: 750 Mbit/s

205 BTU/h

Wired

SSD capacity: 50 GB

Summary Description

Cisco ASA 5506-X, 0.75 Gbit/s, 125 Mbit/s, 205 BTU/h, - 47 CFR - CISPR22 - CNS13438 - EN 300 386 - EN 55022 - EN61000-3-2 - EN61000-3-3 - ICES-003 Issue..., Wired, Ethernet (RJ-45)

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco ASA5506-FTD-K9?

Click hereto find the lowest discounted price for ASA5506-FTD-K9.

Explore even more affordable prices for Firewalls and Cisco products.

specifications

Specification

ASA5506-FTD-K9 Specification

ASA5506-FTD-K9 Specification
Product Number	ASA5506-FTD-K9
Product Description	ASA 5506-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Maximum concurrent sessions	20,000; 50000
Maximum New Connections per second	5,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5506-X w/ FirePOWER Services
Stateful inspection throughput (maximum1)	750 Mbps
Stateful inspection throughput (multiprotocol2)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	100 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	10; 50
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	50
Virtual interfaces (VLANs)	5; 30
Security contexts5(included; maximum)	N/A
High availability	Requires Security Plus License; Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	N/A
User-accessible Flash slot	No
USB 2.0 ports	USB port type ‘A’, High Speed 2.0
Integrated I/O	8 x 1 Gigabit Ethernet (GE)
Expansion I/O	N/A
Expansion I/O	N/A
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	50 GB mSata
Solid-state drive	50 GB mSata
Memory	4 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104°F (0 to 40 °C)
Relative humidity	90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
Acoustic noise	Fanless 0 dBA
Acoustic noise	Fanless 0 dBA
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	90 to 240 VAC
AC current	N/A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	N/A
DC international line voltage	N/A
DC current	N/A
Steady state	12V @2.5A
Maximum peak	12V @ 5A
Maximum heat dissipation	103 British thermal units (Btu)/hr
Form factor	Desktop, rack mountable
Dimensions(H x W x D)	1.72 x 7.871 x 9.23 in.(4.369 x 19.992 x 23.444 cm)
Weight (with AC power supply)	4 lb (1.82 kg)
