Mfr.part#:

DES-1008C-CN

Name: DES-1008C-CN - D-Link 100M Unmanaged Switches
Detail:
D-Link Ports: 8 100M electrical ports, switching capacity: 1.6G, packet forwarding rate: 1.19M, size: 128x71x27mm plastic case, power supply: 5V/0.6A external power supply, non-network management switch DES-1008C-CN
Availability: In Stock
Condition: New
Price: $26.00

DES-1008C-CN

D-Link Ports: 8 100M electrical ports, switching capacity: 1.6G, packet forwarding rate: 1.19M, size: 128x71x27mm plastic case, power supply: 5V/0.6A external power supply, non-network management switch DES-1008C-CN
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
overview
specifications
reviews
Overview

DES-1008C-CN Overview

The DES-1008C 10/100 Mbps Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Quick Specs

Table 1 shows the Quick Specs.

SKU

DES-1008C-CN

100Base-TX Interface

8

Auto MDI/MDIX

Yes

Switching Capacity

1.6 Gbps

Max. Packet Forwarding Rate

1.19 Mpps

Power

5V, 0.55A

Dimension

131x54x21mm

Energy Efficiency Ethernet (EEE)

Yes

Power Saving By Link Status

Yes

Product Details

There are some general features of DES-1008C-CN.

1.Fast Networking Made Easy

With data transfer speeds of up to 200 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media.

 2.Economical, Plug-and-play Networking Switch

The DES-1008C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet.

3.Conserve Energy

The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality.

4.Reliable Plug and Play Installation

The DES-1008C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.

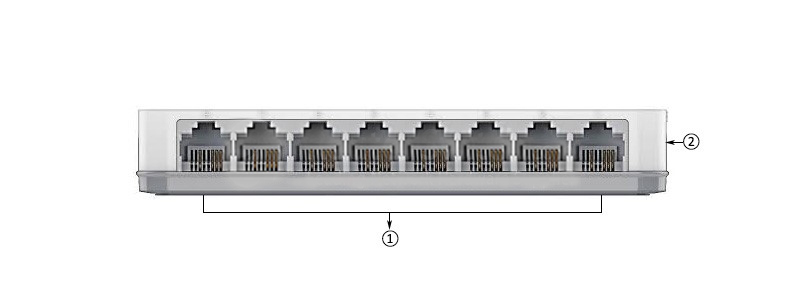

Figure 1 shows the front panel of DES-1008C-CN.

front-panel-of-des-1008c-cn

Note:

â‘

Eight 10/100 Fast Ethernet Ports

â‘¡

Power Connector (on side)

Compare to Similar Items

Table 2 shows the comparison.

Product Name

DES-1008C-CN

DES-1005C-CN

100Base-TX Interface

8

5

Auto MDI/MDIX

Yes

Yes

Switching Capacity

1.6Gbps

1 Gbps

Max. Packet Forwarding Rate

1.19 Mpps

0.74 Mpps

Power

5V, 0.55A

5V, 0.55A

Dimension

131x54x21mm

88x48x21.45mm

Get More Information

Do you have any question about the DES-1008C-CN?

Contact us now via Live Chat or support@buyrouterswitch.com.

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the D-Link DES-1008C-CN?

Our lowest price for DES-1008C-CN is $26.00 Buy Now

Explore even more affordable prices for D-Link and D-Link products.

Specification

DES-1008C-CN Specification

DES-1008C-CN Specification

100Base-TX Interface

8

Auto MDI/MDIX

Yes

Switching Capacity

1.6 Gbps

Max. Packet Forwarding Rate

1.19 Mpps

Store & Forwarding Forwading

Yes

Dimension

131x54x21mm

Operation Temperature

0 ~ 40  °C

Storage Temperature

- 40 ~ 70 °C

Operation Humidity

10% ~ 90% RH

Storage Humidity

5% ~ 95% RH

Maximum Power Consumption

1.55watts

Standby Power Consumption

0.55 watts

Maximum Heat Dissipation

0.691 BTU/h

MTBF

1,579,582 hours

Power Input

DC: 5V, 0.55A

Packet Buffer Size

96KBytes

Fan

Fanless

Energy Efficiency Ethernet (EEE)

Yes

Power Saving By Link Status

Yes

MAC Address Table

2,000

802.3x Flow Control

Yes

Head-of-line (HOL) Blocking Prevention

Yes
