Overview

IE-2000U-4S-G Overview

Cisco IE-2000U-4S-G. Switch type: Managed. USB 2.0 ports quantity: 1. MAC address table: 8000 entries, Switching capacity: 7.6 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack

The IE-2000U-4S-G from the Cisco IE 2000U series switch adopts the IE 2000U 4 SFP FE, 2 SFP GE ports.

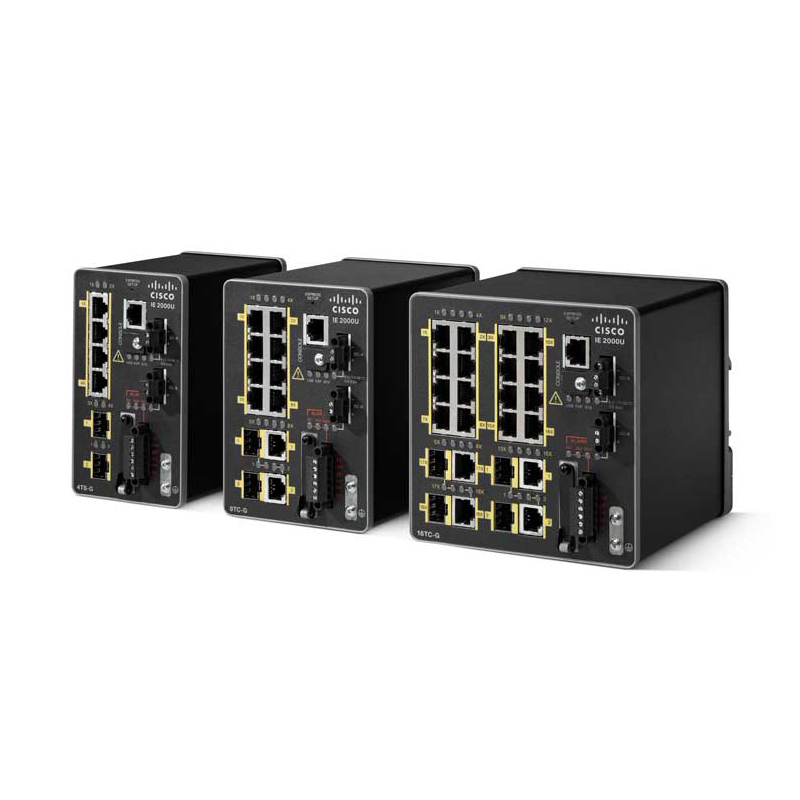

The Cisco Industrial Ethernet (IE) 2000U Switches are compact switches for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches support the communications needs of the utility- and customer-owned energy-delivery infrastructure across distributed generation, transmission, and distribution sectors. This infrastructure includes substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, cogeneration, and trackside operations.

Quick Spec

Table 1 shows the quick spec.

Model	IE-2000U-4S-G
Total Ports	6
SFP Ports	2 GE + 4 FE
Software	LAN Base
Power Consumption	9.5-15 W
Dimensions (H x W x D), Including DIN Rail	5.1 x 3.15 x 4.51 in (130 x 80 x 115 mm)
Power Supply	Redundant DC input voltage with operating range: 12-48 VDC Nominal, 9.6-60 VDC Maximum Maximum DC input current: 0.5A at 48 VDC, 1A at 24 VDC

Product Details

Cisco IE 2000U Series Switches are designed for DIN rail mounting, low port counts, and small sizes. They offer:

● Four, eight, or 16 Fast Ethernet ports (either SFP (Small Form-Factor Pluggable) or 100BaseT RJ45 downlinks depending on the model); fixed configurations with a compact form factor

● Two Gigabit Ethernet uplink ports (SFP, RJ45 or combo) and up to 2 additional FE uplinks depending on model

● IEC-62439-3: Parallel Redundancy Protocol support on 8 and 16 port models

● Dual-input DC power supply, alarm relays, DIN rail mount

● Swappable SD flash card required and included

● Mini-USB and traditional serial console connector

● Substation environmental compliance and certifications: IEC-61850-3 and IEEE 1613

● Conformal coating available on specific models

Software and Accessories part numbers

Table 2 shows the Cisco IE 2000U Software and Accessories part numbers.

Product Number	Description
MEM-SD-1GB-RGD	1 GB industrial-grade Secure Digital (SD) memory card
STK-RACKMNT-2955	19 in. DIN rail mount kit

Compare to Similar Items

Table 3 shows the comparison.

Product Number	Total Ports	RJ45 Ports	Combo Ports	SFP Ports	Software	IEEE 1588	PRP	PoE(+)
IE-2000U-4TS-G	6	4 FE	2 GE	LAN Base
IE-2000U-4T-G	6	2 GE + 4 FE	LAN Base
IE-2000U-4S-G	6	2 GE + 4 FE	LAN Base
IE-2000U-8TC-G	10	8 FE	2 GE	LAN Base	X	X
IE-2000U-16TC-G	20	16 FE	2 GE + 2 FE	LAN Base	X	X
IE-2000U-16TC-G-X*	20	16 FE	2 GE + 2 FE	LAN Base	X	X
IE-2000U-16TC-GP	18	16 FE	2 GE	LAN Base	X	X	X

Get More Information

Do you have any question about the IE-2000U-4S-G?

4x SFP FE, 2x SFP GE, 256 MB DRAM, 1 GB SD flash

Managed Web-based management BRIDGE-MIB (RFC1493), BGP4-MIB (RFC1657), CISCO-CABLE-DIAG-MIB, CISCO-BULK-FILE-MIB, CISCO-CDP-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONF-MAN-MIB, CISCO-DATA-COLLECTION-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-ETHERNET-ACCESS-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IETF-DOT3-OAM-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IPLSA-ETHERNET-MIB, CISCO-PAGP-MIB, CISCO-PAE-MIB, CISCO-PING-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-IMAGE-MIB, CISCO-LAG-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-RTTMON-MIB, CISCO-STACK-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, ENTITY-MIB(RFC2737), ETHERLIKE-MIB, IEEE8021-PEA-MIB, IEEE8023-LAG-MIB, IF-MIB (RFC 1573), IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, PIM-MIB, RFC1213-MIB (MIB-II), RMON-MIB (RFC 1757), RMON2-MIB (RFC 2021), SNMP-FRAMEWORK-MIB (RFC2571), SNMP-MPD-MIB (RFC 2572), SNMP-NOTIFICATION-MIB (RFC 2573), SNMP-TARGET-MIB (RFC 2573), SNMPv2-MIB (RFC 1907), SNMP-USM-MIB (SNMP-USER-BASED-SM-MIB) (RFC2574), SNMP-VACM-MIB (SNMP-VIEW-BASED-ACM-MIB) (RFC2575), TCP-MIB (RFC 2012), UDP-MIB (RFC 2013)

Quality of Service (QoS) support

MAC address table: 8000 entries Switching capacity: 7.6 Gbit/s

Access Control List (ACL)

Summary Description

Cisco IE-2000U-4S-G, Managed

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco IE-2000U-4S-G?

Our lowest price for IE-2000U-4S-G is $740.28 Buy Now

Explore even more affordable prices for Switches and Cisco products.

specifications

Specification

IE-2000U-4S-G Specification

IE-2000U-4S-G Specification
General
Device Type	Switch - 6 ports - managed
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	4 x 100 Mbit SFP + 2 x 1000Base-X SFP (uplink)
Performance	Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity	Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000
MAC Address Table Size	8K entries
Routing Protocol	OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, IGMP, PIM-SM, PIM-DM, MLDv2, MLD
Remote Management Protocol	SNMP 1, SNMP 2, RMON 2, RMON, SNMP 3, HTTP, TFTP, SSH, CLI, SCP
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	ARP support, VLAN support, Syslog support, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Port Security, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), rugged, Strict Priority Queuing (SPQ), Class of Service (CoS), 802.1x authentication, FTP client, Storm Control, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP)
Compliant Standards	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 1588v2
RAM	256 MB
Flash Memory	128 MB
Expansion / Connectivity
Interfaces	4 x 100Base-FX SFP downlink ¦ 2 x 1000Base-X SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
Power
Power Consumption Operational	15 Watt
Miscellaneous
Compliant Standards	CISPR 22 Class A, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, ICES-003 Class A, UL 508, FCC Part 15 A, CSA 22.2 No. 142, VCCI Class A, KN24, KN22 Class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC 61850-3, IEC/UL/CSA/EN 60950-1, EN 55022 Class A, EN 60079-15:2010, IEEE 1613, CNS 13438 Class A, EN 300 386
Software / System Requirements
Software Included	Cisco IOS LAN Base
Dimensions & Weight
Width	3.1 in
Depth	4.5 in
Height	5.1 in
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - 5 years - response time: 10 days
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	158 °F
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-58 °F
Max Storage Temperature	185 °F
